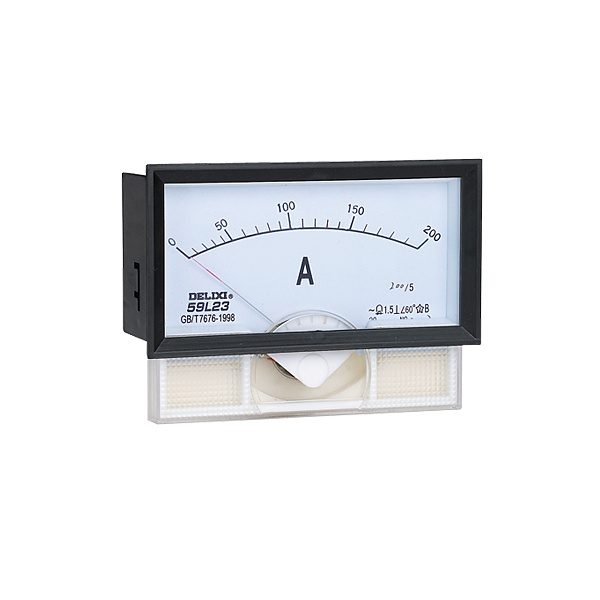

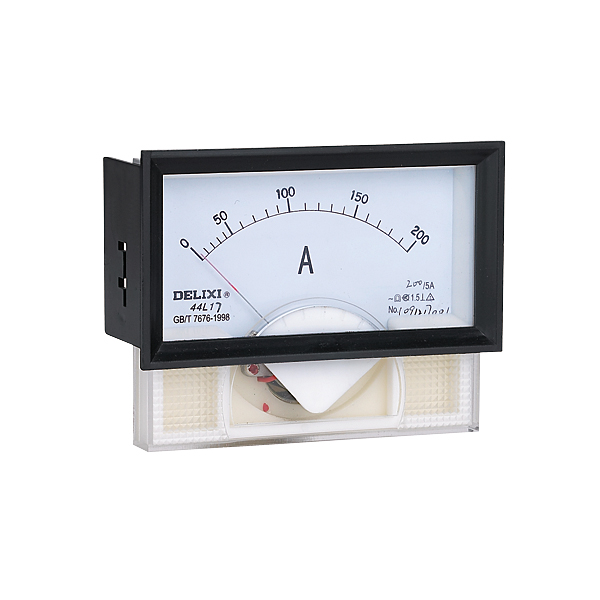

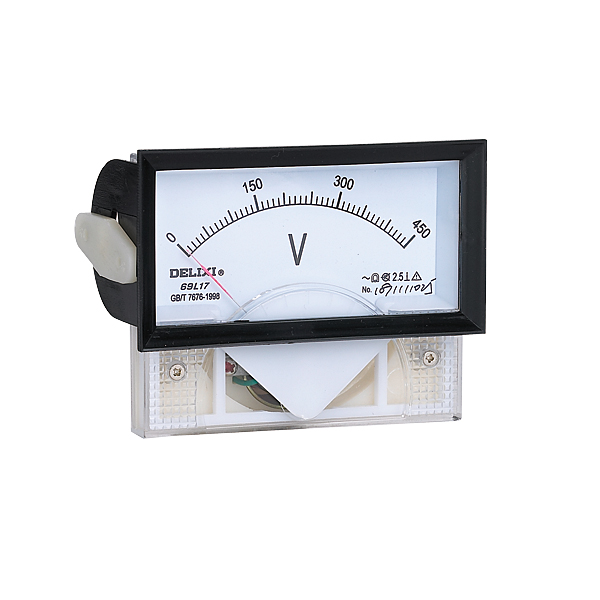

This product contains the following details
| Product name | Input method | Design No. | Type | Range |
| 85 | C | 17 | A | * |
|
85:85 |
C:DC L:AC |
17:17 23:23 |
A: Ammeter |
*:*A (V, Hz, W, var, COSφ) See table of range parameters for details |
| Input Method | Type |
| DC | Ammeter, Voltmeter |
| AC |
Ammeter, voltmeter, Active power meter, Reactive power meter, Frequency Meter, power factor meter |
Range Parameter Table
| Product type | Type | Range | Accuracy class |
| DC Ammeter |
44C17-A 85C17-A
|
Connect directly to 50μA～500μA |
Class 1.5 Class 2.5 |
| Connect directly to 1mA～500mA | |||
| Connect directly to 1A～10A | |||
| Connect to 5A～10kA via external shunt | |||
| DC voltmeter |
44C17-V 85C17-V |
Connect directly to 3V～600V | |
| Connect to 750V～1.5kV via external resistant | |||
| AC Ammeter |
44L17-A 85L17-A
|
Connect directly to 0.1A～50A | |
| Connect to 5A/5A～10kA/5A via 5A Secondary CT | |||
| AC voltmeter |
44L17-V 85L17-V |
Directly connect to 3V～600V | |
| Connect to 380V/100V～380kV/100V via 100V Secondary VT | |||
| Frequency Meter |
44L17-Hz 85L17-Hz |
45Hz～55Hz 55Hz～65Hz 45Hz～65Hz |
Class 1.0
|
| 100V 220V 380V | |||
|
Active power meter Reactive power meter |
44L17-W 85L17-W
|
Connect directly to voltage100V 220V 380V | Class 2.5 |
| Connect to 380V/100V～380kV/100V via 100V Secondary VT | |||
|
44L17-var 59L23-var 69L17-var 85L17-var |
Connect directly to current5A | ||
| Connect to 5A/5A～10kA/5A via 5A Secondary CT | |||
| Three-phase power factor meter |
44L17-COSφ 85L17-COSφ |
0.5 (lead) ～1～0.5 (lag) | |
| 100V/5A 220V/5A 380V/5A |
Note: Type 85 and Type 69 ammeters and voltmeters have an accuracy of Class 2.5 (Class 1.5 for Type 44 and Type 59)
Order Information: The ordering code for Type 69 pointer panel meter (AC input, ammeter) is 69L17A*.
■ Display variation trend of measured object and easy to read.
■ The cover is made of transparent organic glass.
■ Wedge-frame-mounted installation
| International Standard | IEC 51-1~9 |
| National Standard | GB/T 7676.1~9 |
| Industrial Standard | JB/T 9281, JB/T 9282, JB/T 9284, JB/T 9286, JB/T 9287 |
| Withstand Voltage Test | Frequency: 50Hz, voltage: 2000V, lasting time: 1min |
| Resistance to mechanical shock | Max. speed: 147m/s2 |
| Responding time | ≤4S |
| Deflection angle of pointer | 90° |
■ Type FL2 Fixed Constant-value Shunt is used for extending the range of DC meters, and has a rated voltage drop of 75mV.
■ Install external power converter and DC ammeter to measure active power or reactive power.
■ Install power factor converter and DC ammeter to measure power factor.

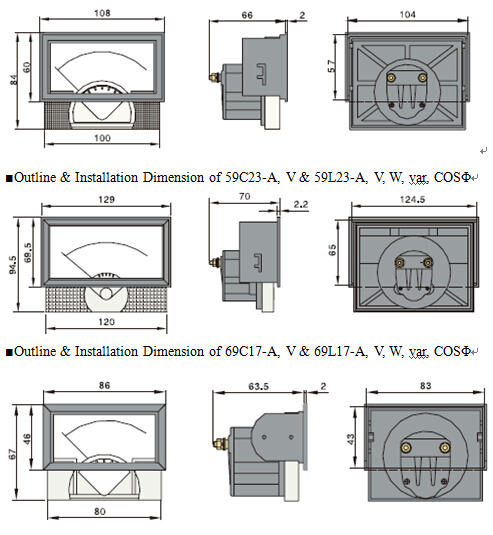

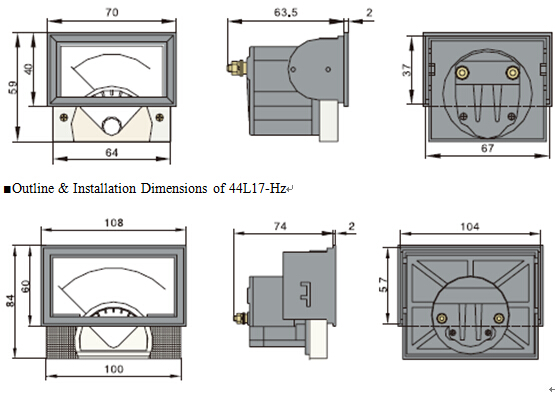

■ Outline and installation size of 44C17-A, V and44L17-A, V, W, var, COSΦ

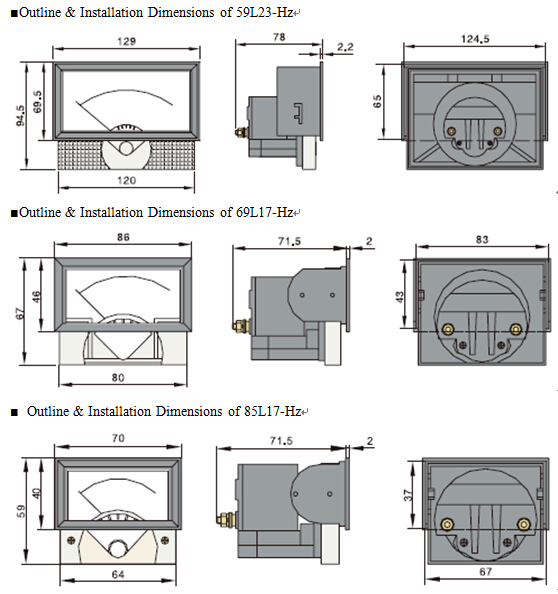

■ Outline & Installation Dimensions of 85C17-A, V &85L17-A, V, W, var, COSΦ

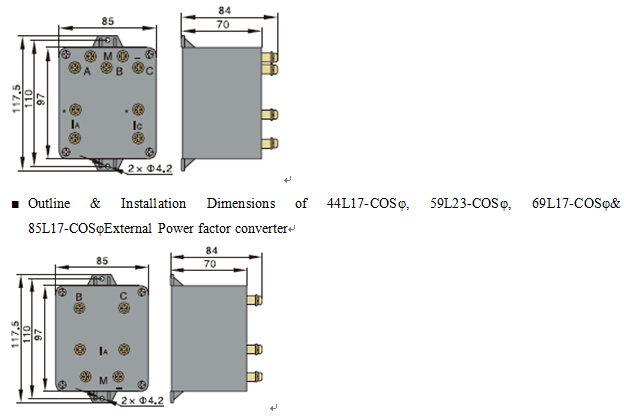

■ Outline & Installation Dimensions of 44L17-W, var,59L23-W, var,69L17-W, var &85L17-W, var External Power converter

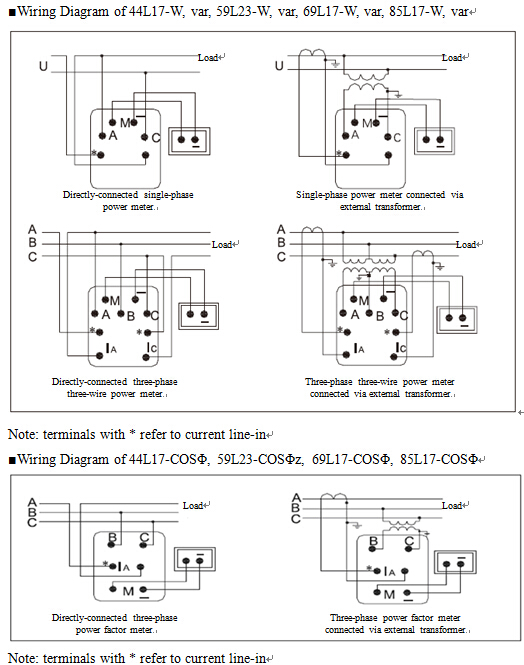

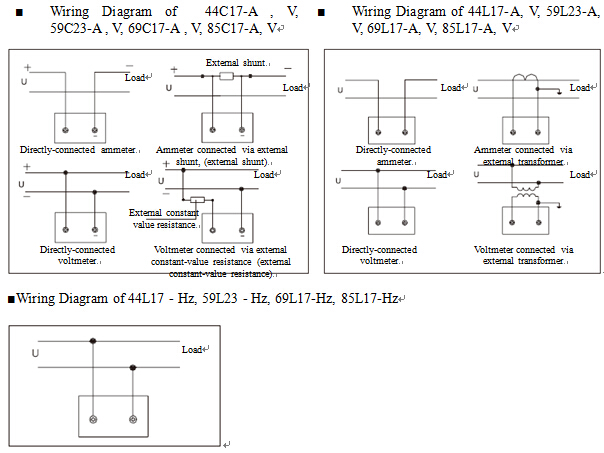

Wiring Diagram
